$2.49

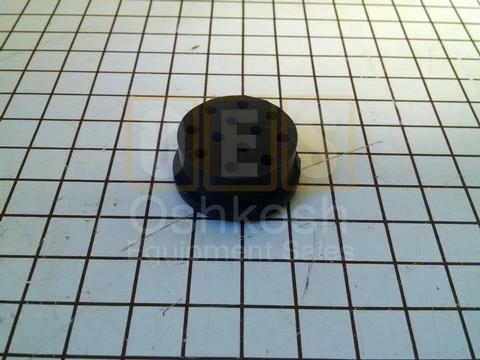

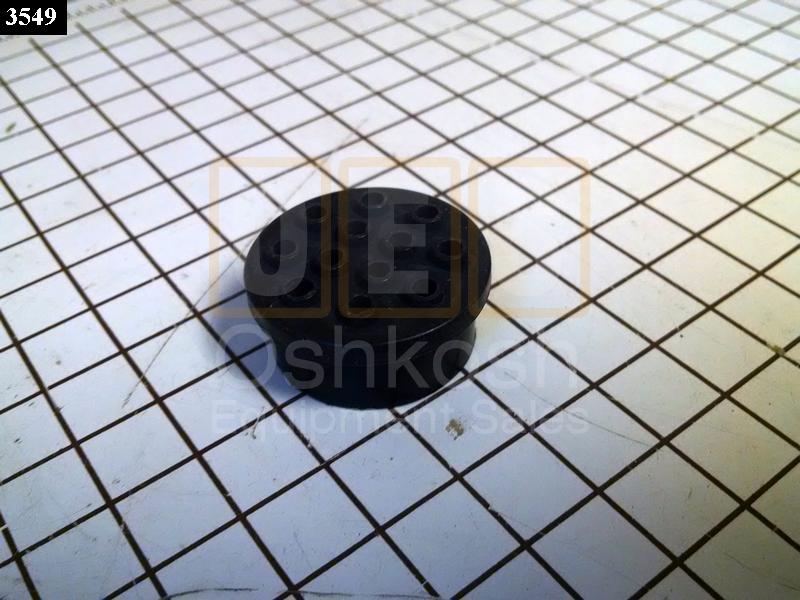

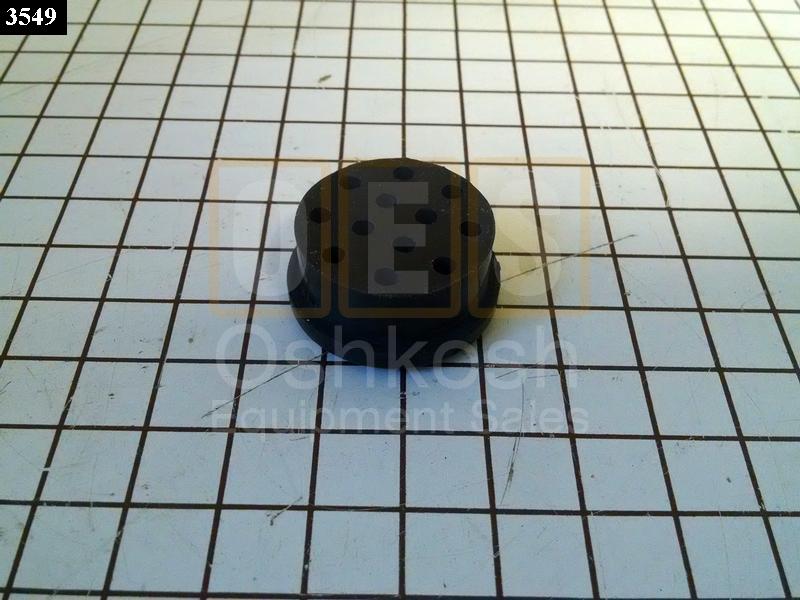

Rubber Grommet
- Military Part Number: 7722333
- Military Description:
BUSHING,NONMETALLIC
- National Stock Number (NSN): 5365-00-090-5426, 5365000905426
- Federal Supply Class (FSC): 5365 (Vehicular Brake, Steering, Axle, Wheel and Track Components-10)
- National Item Identification Number (NIIN): 000905426
- Federal Stock Number (FSN): 5365-090-5426, 53650905426
Rubber Grommet for Military Trucks and Trailers.
HOLE DIAMETER 0.140 INCHES NOMINAL
OVERALL LENGTH 0.657 INCHES NOMINAL
FLANGE DIAMETER 1.406 INCHES NOMINAL
BODY DIAMETER 1.240 INCHES NOMINAL
BODY LENGTH 0.438 INCHES NOMINAL
FLANGE HEIGHT 0.156 INCHES NOMINAL
HOLE QUANTITY 12
This item fits the following series and models of equipment:
M39 / M54 Series (5-Ton)
M139 , M139A2F , M139C , M139D , M139F , M246 , M246A2 , M291A2 , M291A2C , M291A2D , M328A1 , M40 W/WINCH , M40 WO/WINCH , M41 W/WINCH , M41 WO/WINCH , M51 W/WINCH , M51 WO/WINCH , M51A2 W/WINCH , M51A2 WO/WINCH , M52 W/WINCH , M52 WO/WINCH , M52A1 W/WINCH , M52A1 WO/WINCH , M52A2 W/WINCH , M52A2 WO/WINCH , M54 W/WINCH , M54 WO/WINCH , M543 , M543A1 , M543A2 , M54A1 W/WINCH , M54A1 WO/WINCH , M54A2 W/WINCH , M54A2 WO/WINCH , M54A2C W/WINCH , M54A2C WO/WINCH , M55 W/WINCH , M55 WO/WINCH , M55A2 W/WINCH , M55A2 WO/WINCH , M62 , M748A2
M809 Series (5-Ton)
M813 W/WINCH , M813 WO/WINCH , M813A1 W/WINCH , M813A1 WO/WINCH , M814 W/WINCH , M814 WO/WINCH , M815 , M816 , M817 W/WINCH , M817 WO/WINCH , M818 W/WINCH , M818 WO/WINCH , M819 , M820 , M820A1 , M820A2 , M821
M939 Series (5-Ton)
M923 , M923A1 , M923A2 , M924 , M924A1 , M925 , M925A1 , M925A2 , M926 , M926A1 , M927 , M927A1 , M927A2 , M928 , M928A1 , M928A2 , M929 , M929A1 , M929A2 , M930 , M930A1 , M930A2 , M931 , M931A1 , M931A2 , M932 , M932A1 , M932A2 , M934 , M934A1 , M934A2 , M935 W/HLG , M935A1 W/HLG , M935A2 , M936 , M936A1 , M936A2 , M941 W/WINCH , M941 WO/WINCH , M941A1 W/WINCH , M941A1 WO/WINCH , M945 W/WINCH , M945A1 W/WINCH
